Brand: MechPuConToy
Color: Red&silver
Features:

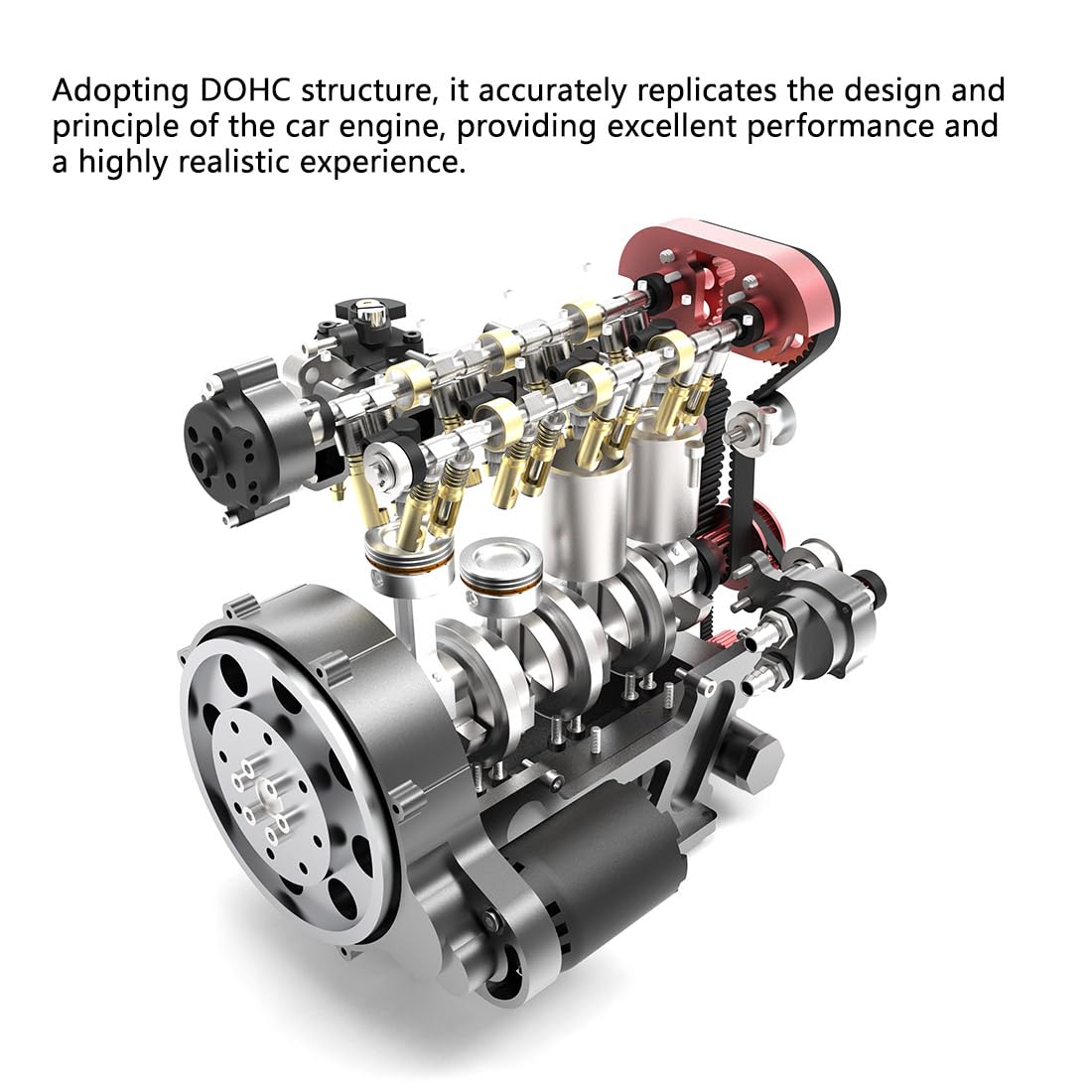

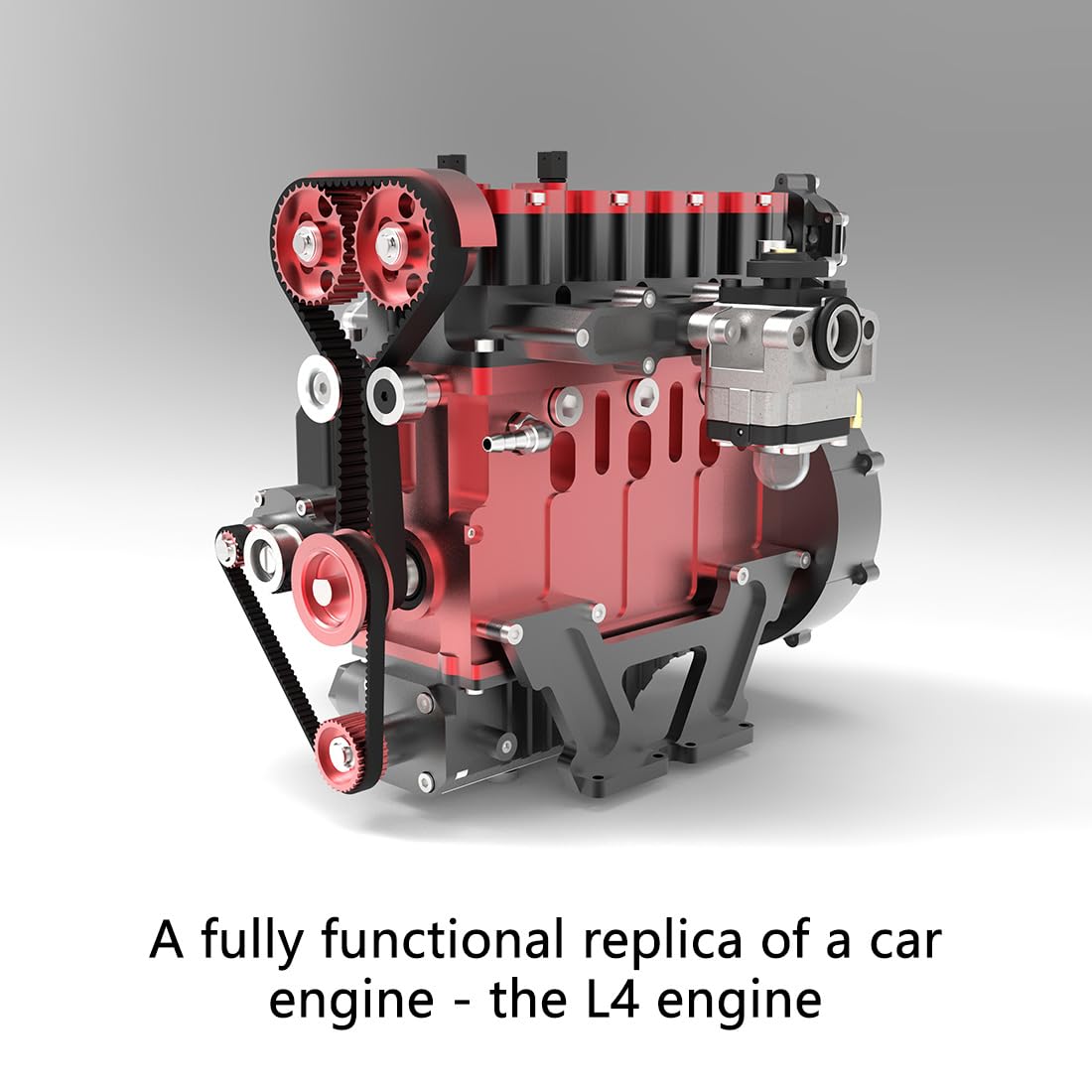

- Realistic DOHC Engine Model: GS-L4 engine features a 4-stroke inline-four DOHC layout, accurately replicating real automotive internal combustion systems
- Precision Engineering & Materials: Crafted from high-grade metal, this 36cc gasoline engine showcases true mechanics with visible combustion dynamics and smooth performance

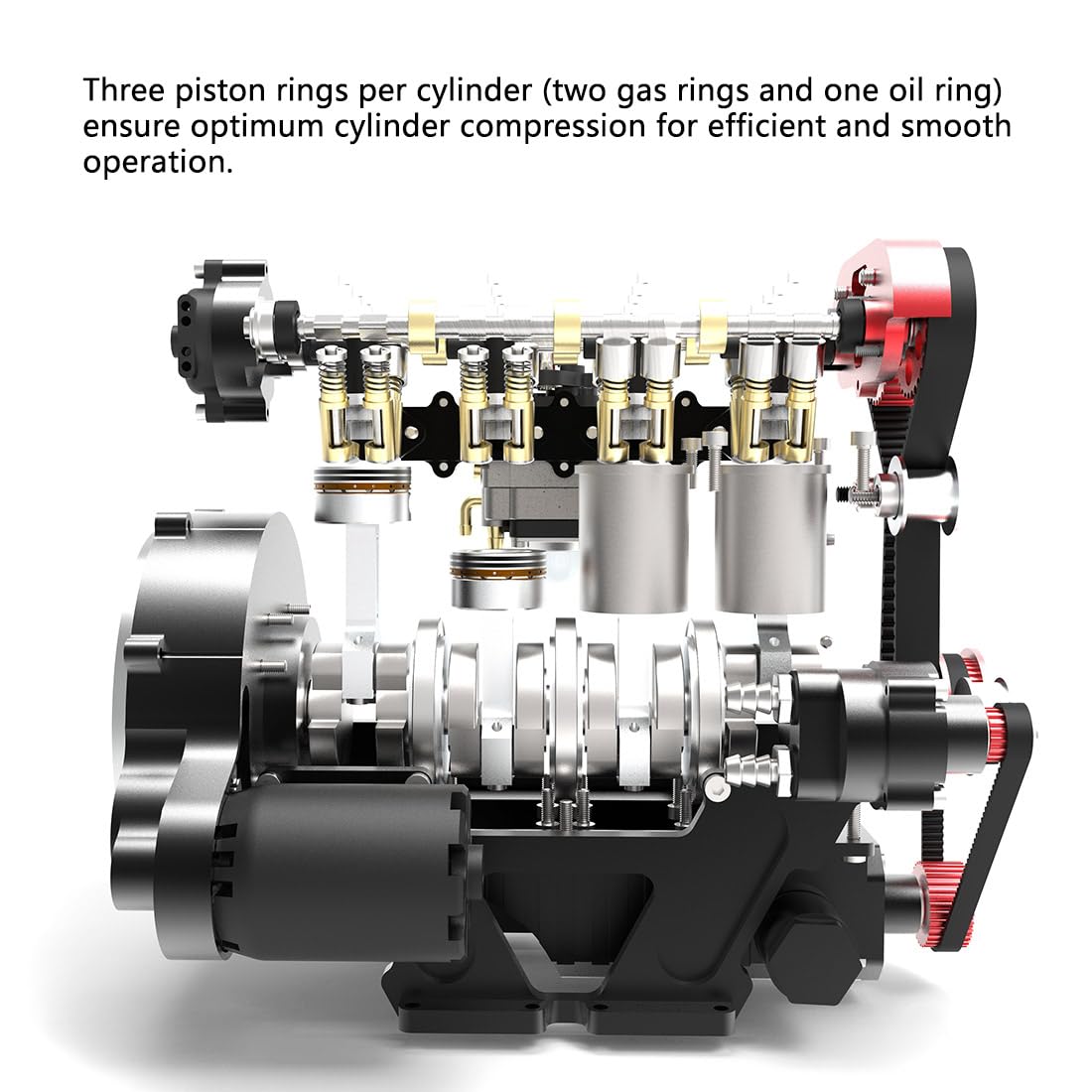

- High Compression Efficiency: Triple piston ring design on each cylinder ensures stable compression, enhancing torque, efficiency, and engine responsiveness

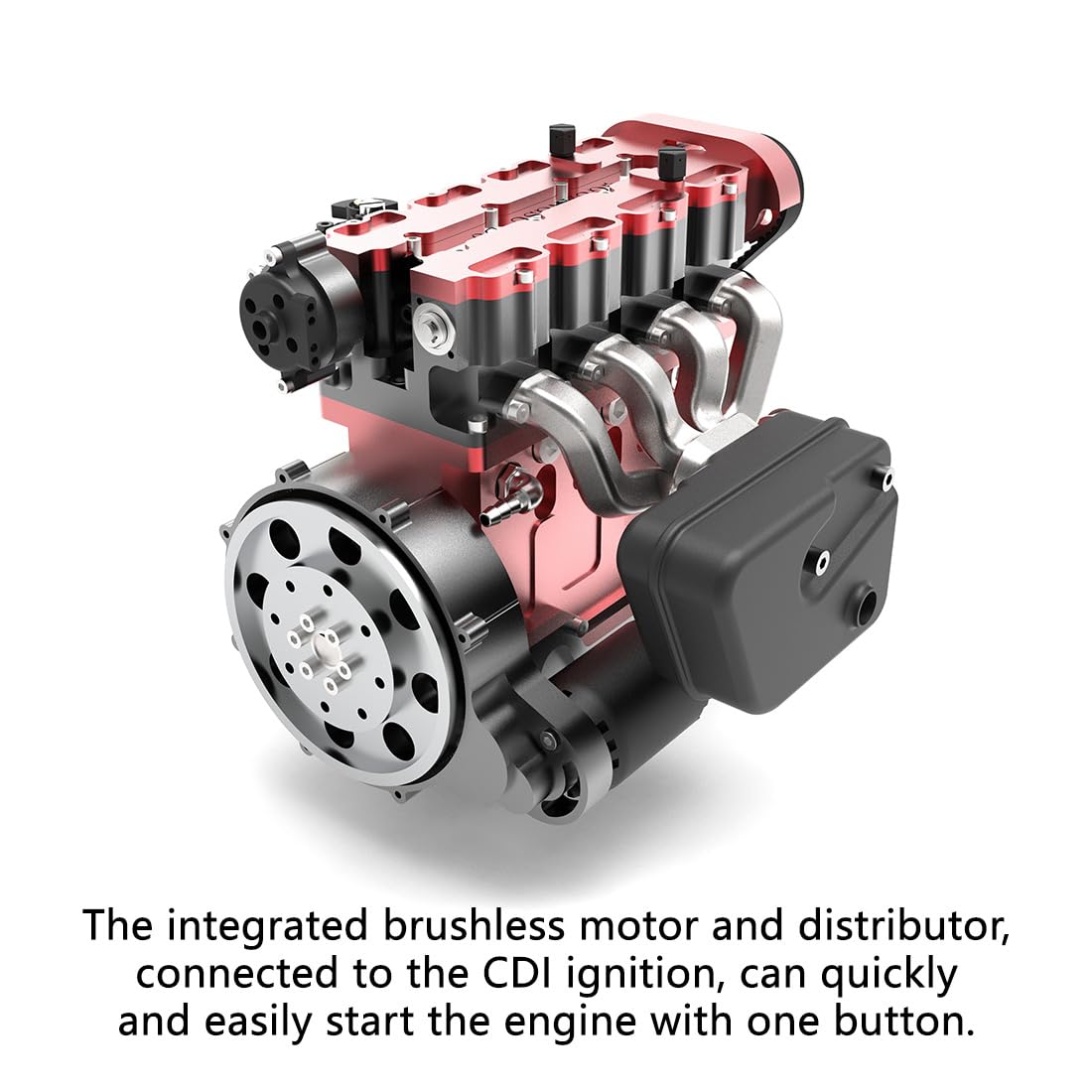

- Smooth Start with CDI Ignition: Built-in brushless motor and CDI ignition allow quick, reliable starts—perfect for model car engine displays and functional mechanical builds
- Water-Cooled & Lubricated: Equipped with water-cooling and an oil pump-driven lubrication system, extending engine life and simulating real vehicle operation
Part Number: 15256AZKUK7249EOZ27QEN5UV

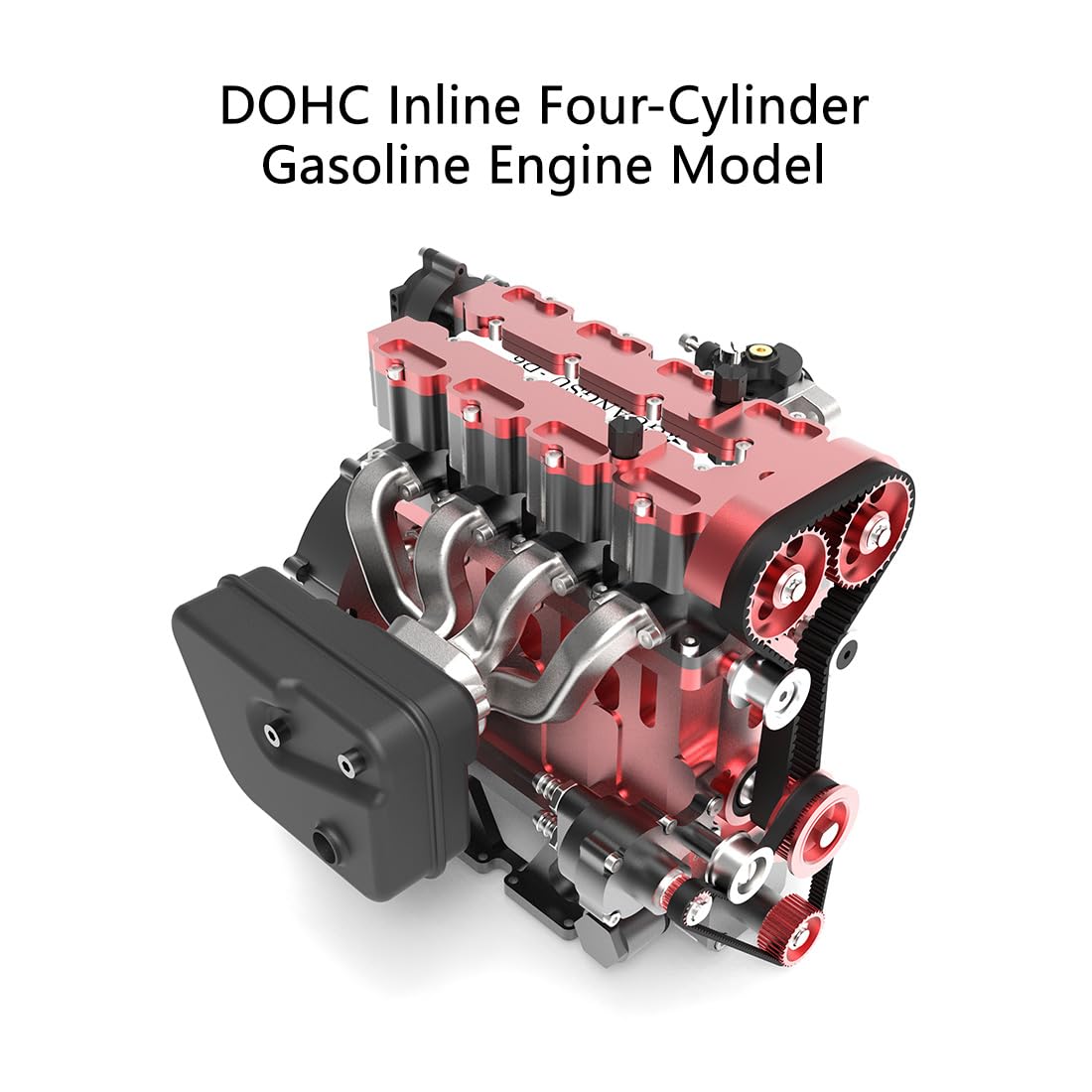

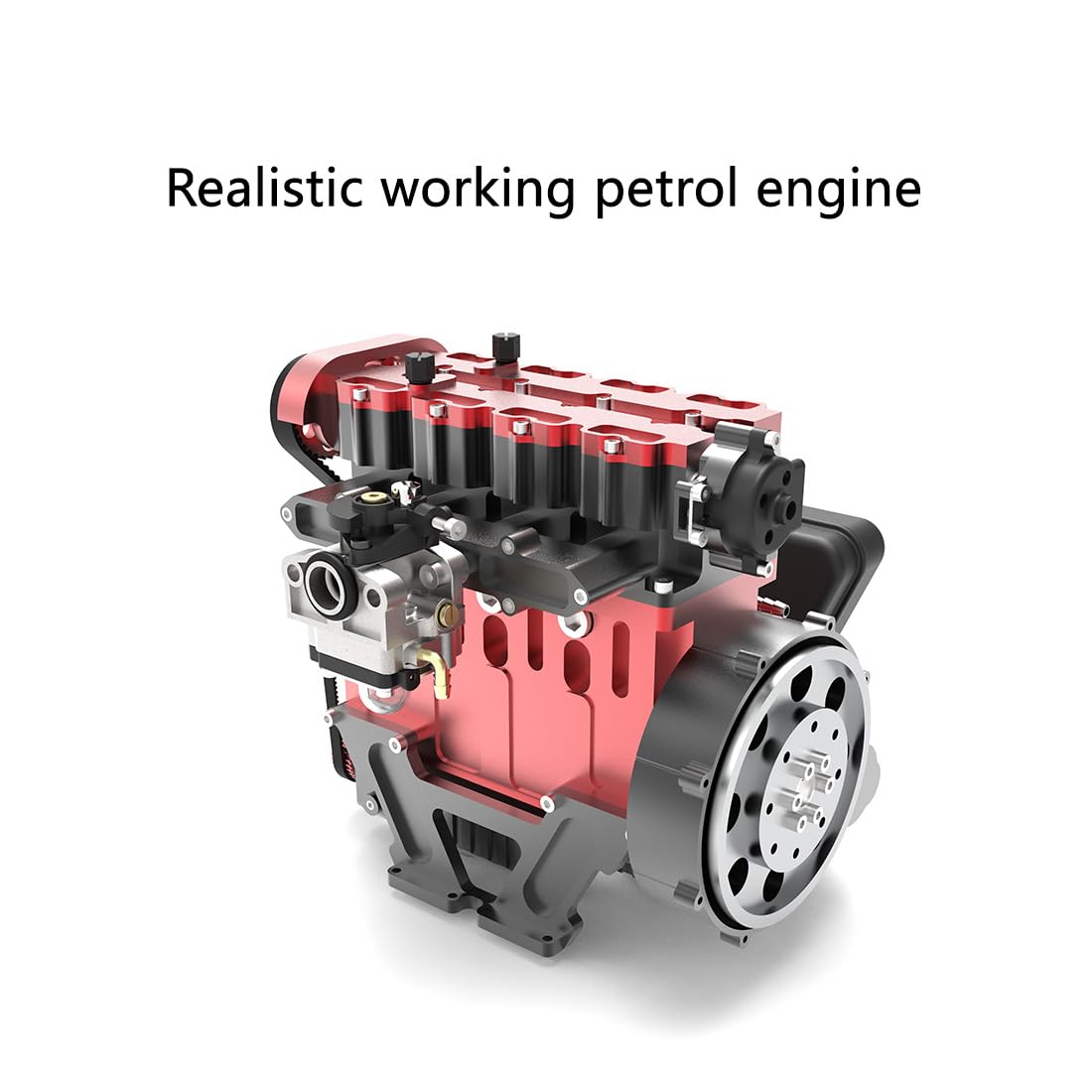

Details: GS-L4 Engine 36cc Water-Cooled 4-Stroke DOHC Inline Four-Cylinder Engine
Specifications:
.Material: Metal
.Model: GS-L4 (D6S)
.Form: Finished Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism: DOHC
.Displacement: 36cc
.Cylinders: Inline Four-Cylinder
.Cycle: Four-Stroke
.Bore: 22.9mm
.Stroke: 20.0mm
.Output Shaft Diameter: 10mm
.Max RPM: 12,000 rpm
.Max Power: 1.8kw
.Cooling System: Water-Cooled
.Lubrication System: Independent Lubrication (Oil Pump Lubrication)
.Starting Method: Brushless Motor Start
.Ignition Type: CDI Ignition with Distributor Control
.Spark Plug Type: 1/4-32 Thread ME8 Spark Plug
.CDI Ignition Power Supply: 10-12V Battery
.Starter Motor Power Supply: 80A ESC and 24V Battery
.Fuel: 92 or higher gasoline
.Oil Type: 0-20W, 50mL
.Product Weight: 3000g
.Package Weight: 4000g
.Product Dimensions: 19.4 x 14 x 17cm
.Package Dimensions: 27 x 18 x 20cm
.Packing: Crash-proof Box

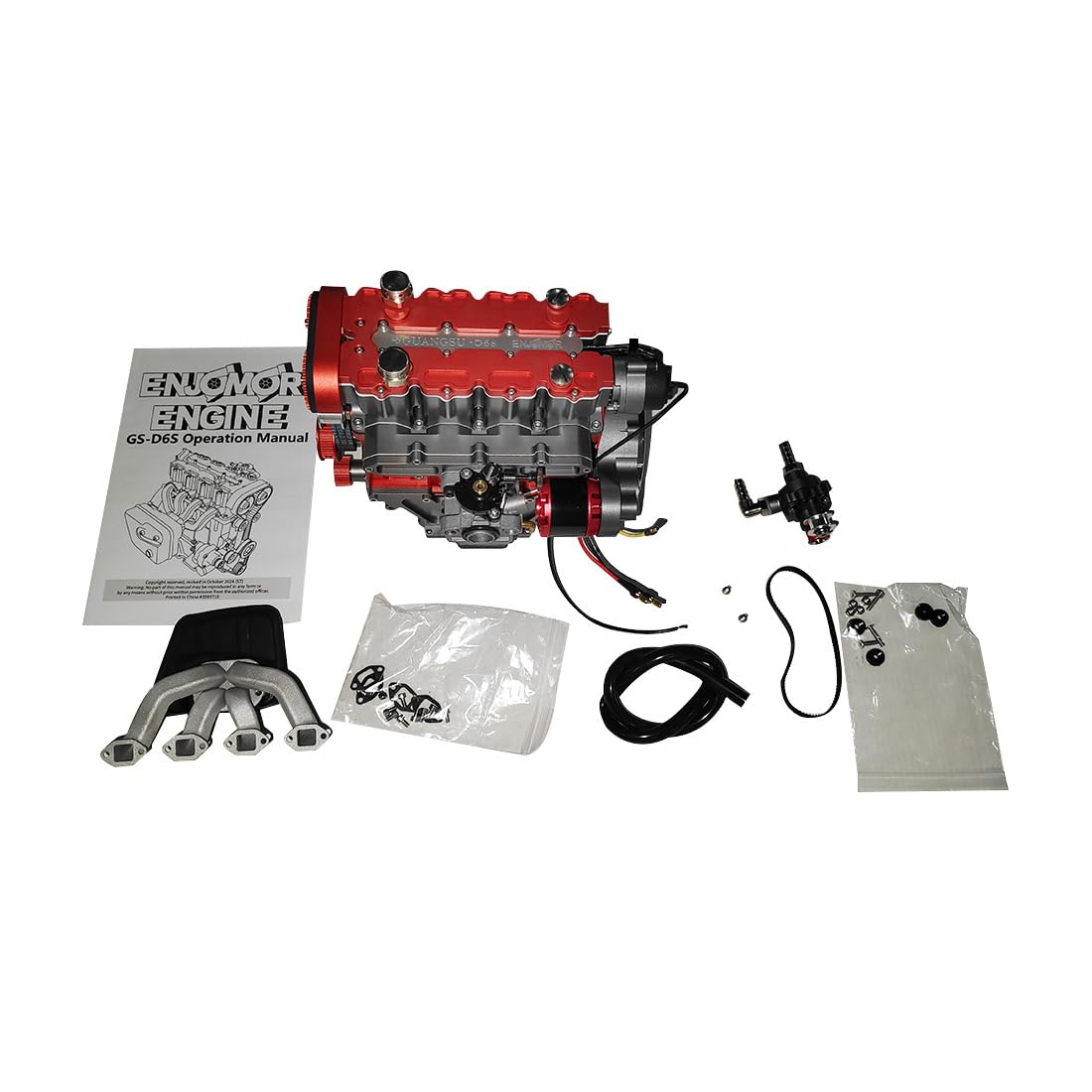

Package Including
.Engine Model *1(with pre-installed bracket and 4 spark plugs)
.Manual *1
EAN: 6213960827127
Package Dimensions: 10.6 x 7.9 x 7.1 inches
