Brand: MechPuConToy
Color: As Shown
Features:
- Compact & Efficient Design: This marine three-cylinder reciprocating steam engine features a simple yet effective design, offering excellent performance in a smaller and more refined appearance

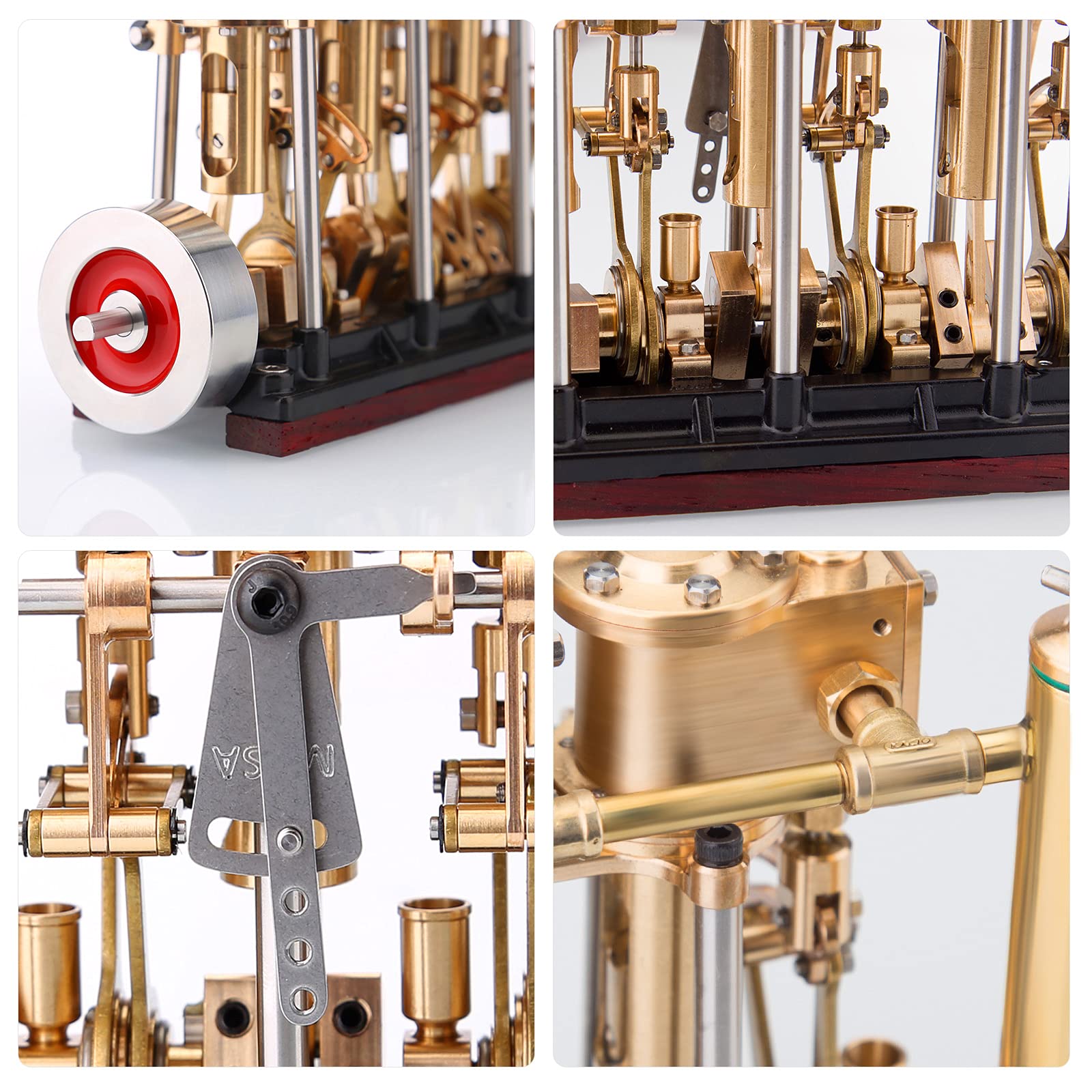

- Sturdy Construction: Precision casting base with surface electrophoresis treatment ensures non-rust properties, while CNC-finished parts improve precision and reliability; the unique ladder frame structure increases torsional resistance
- Premium Seals: The cylinder head joint is sealed with a 0.08mm copper sheet for high-temperature and corrosion resistance, while high-hardness beryllium copper bearings ensure longer, stable operation
- Enhanced Lubrication: Features an oil cup with an oil discharge function and a lubrication filling port on the piston connecting rod, providing optimal lubrication to prolong service life
- Perfect for Model Ships: Specifically designed for steam model ships between 80CM and 120CM in length, supporting both forward and reverse rotation; recommended to equip with an efficient boiler and valve accessories for optimal power (not included)
model number: N03W1428FRM
Part Number: N03W1428FRM

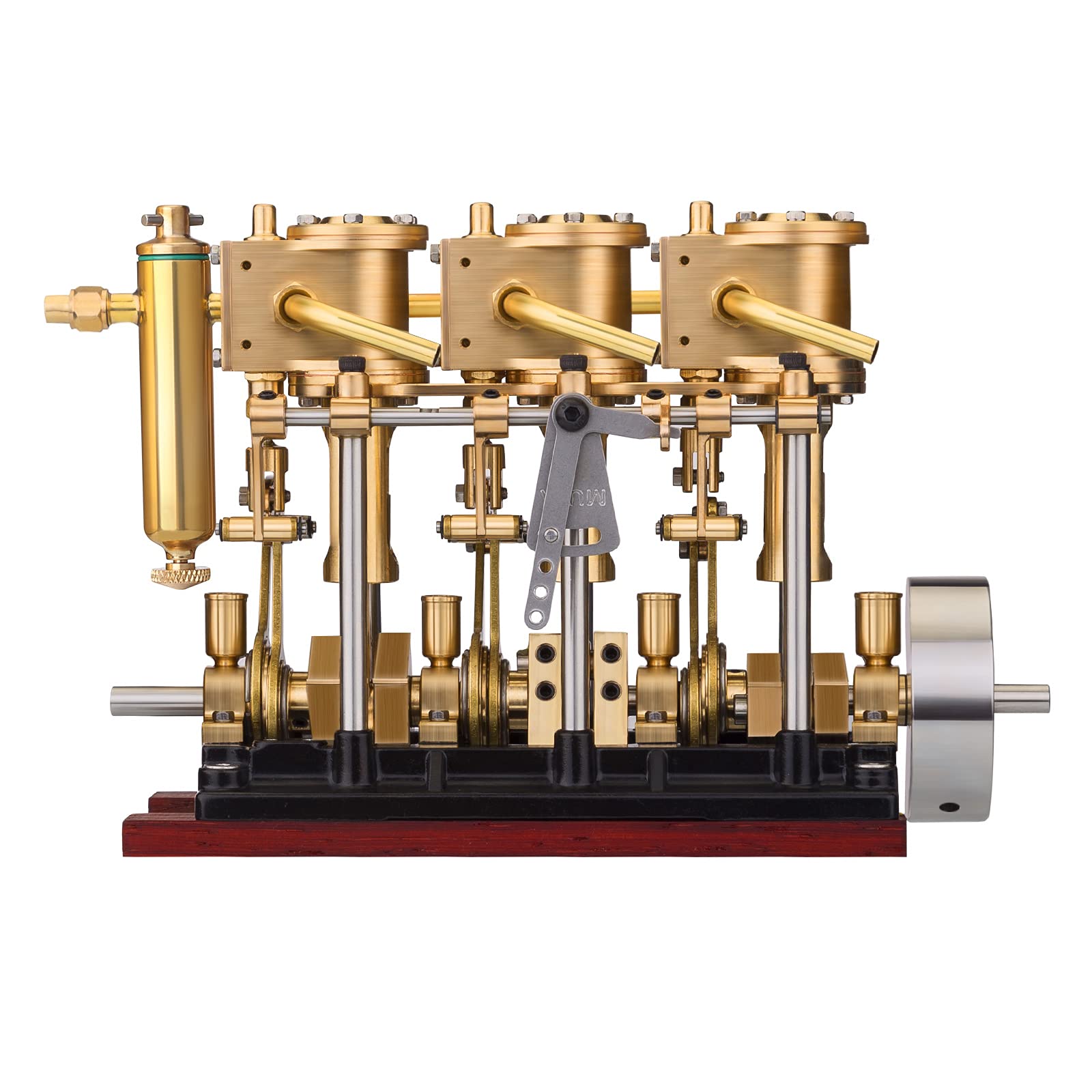

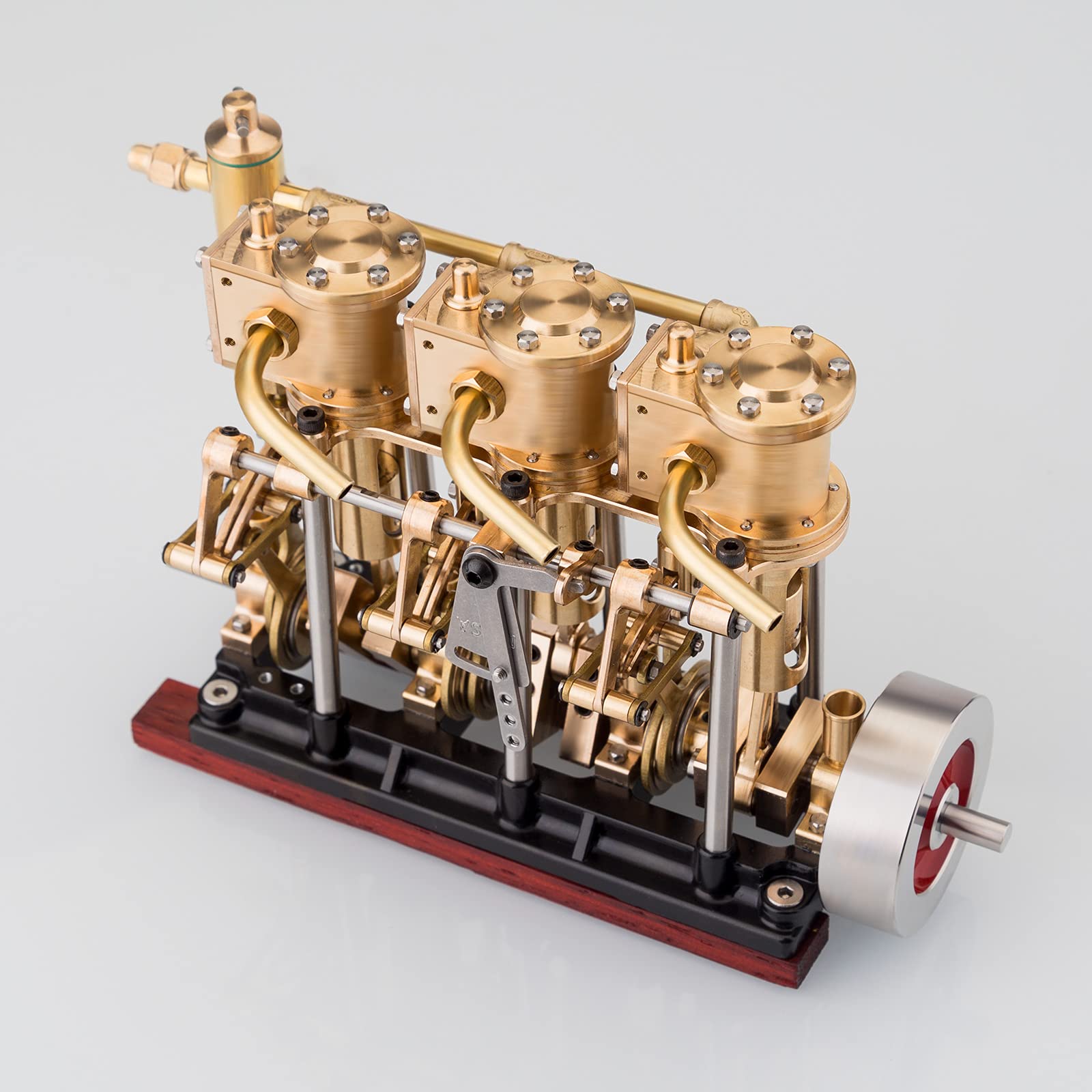

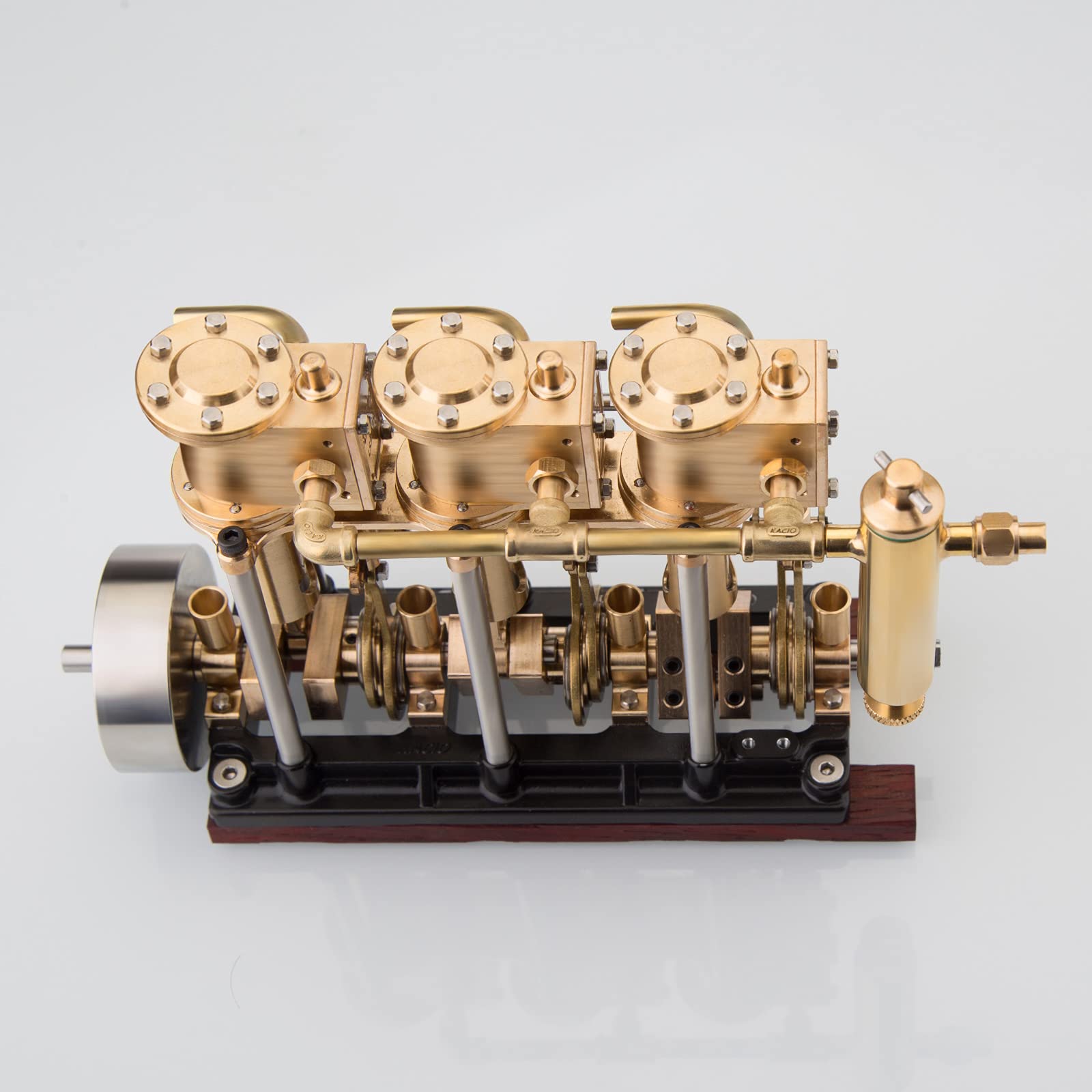

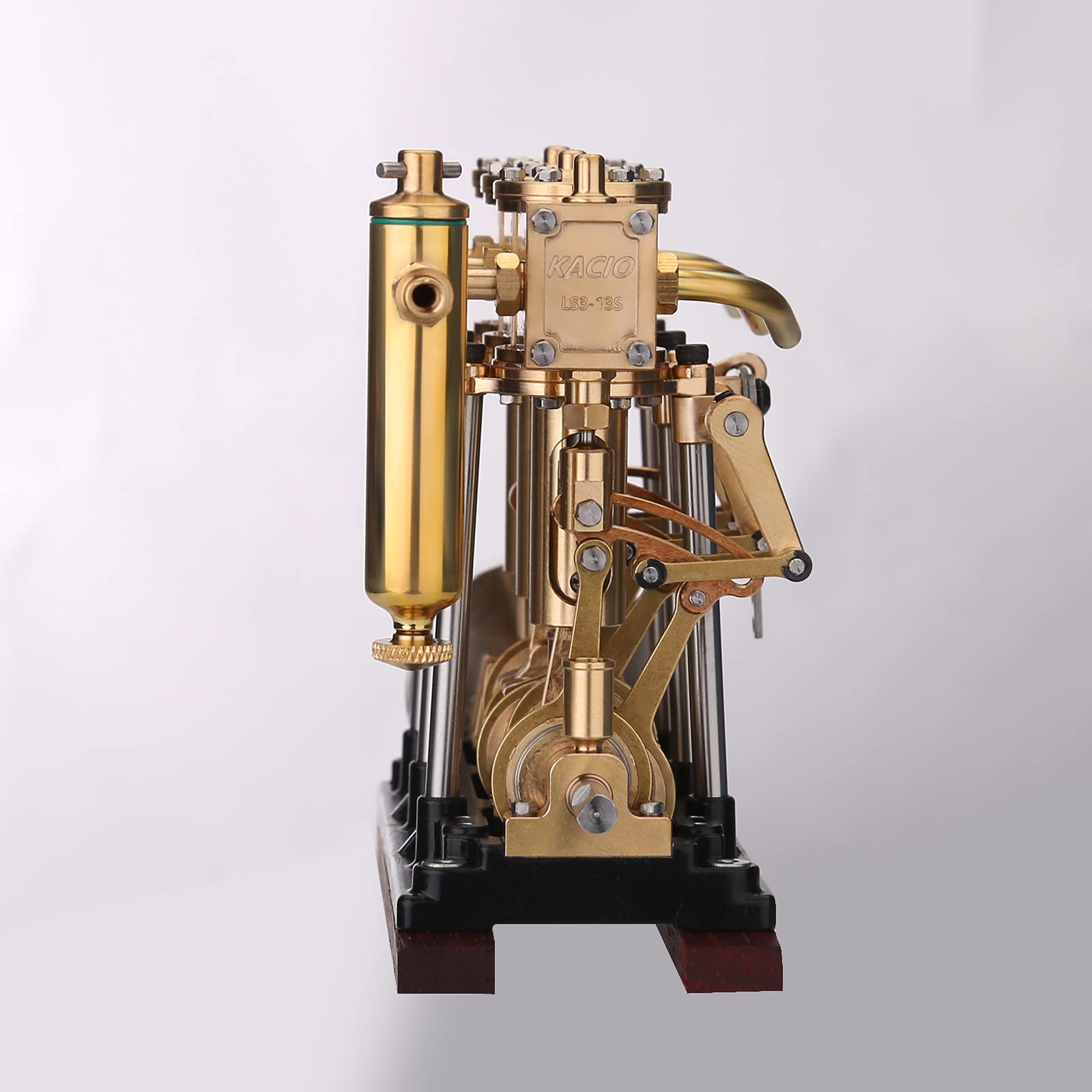

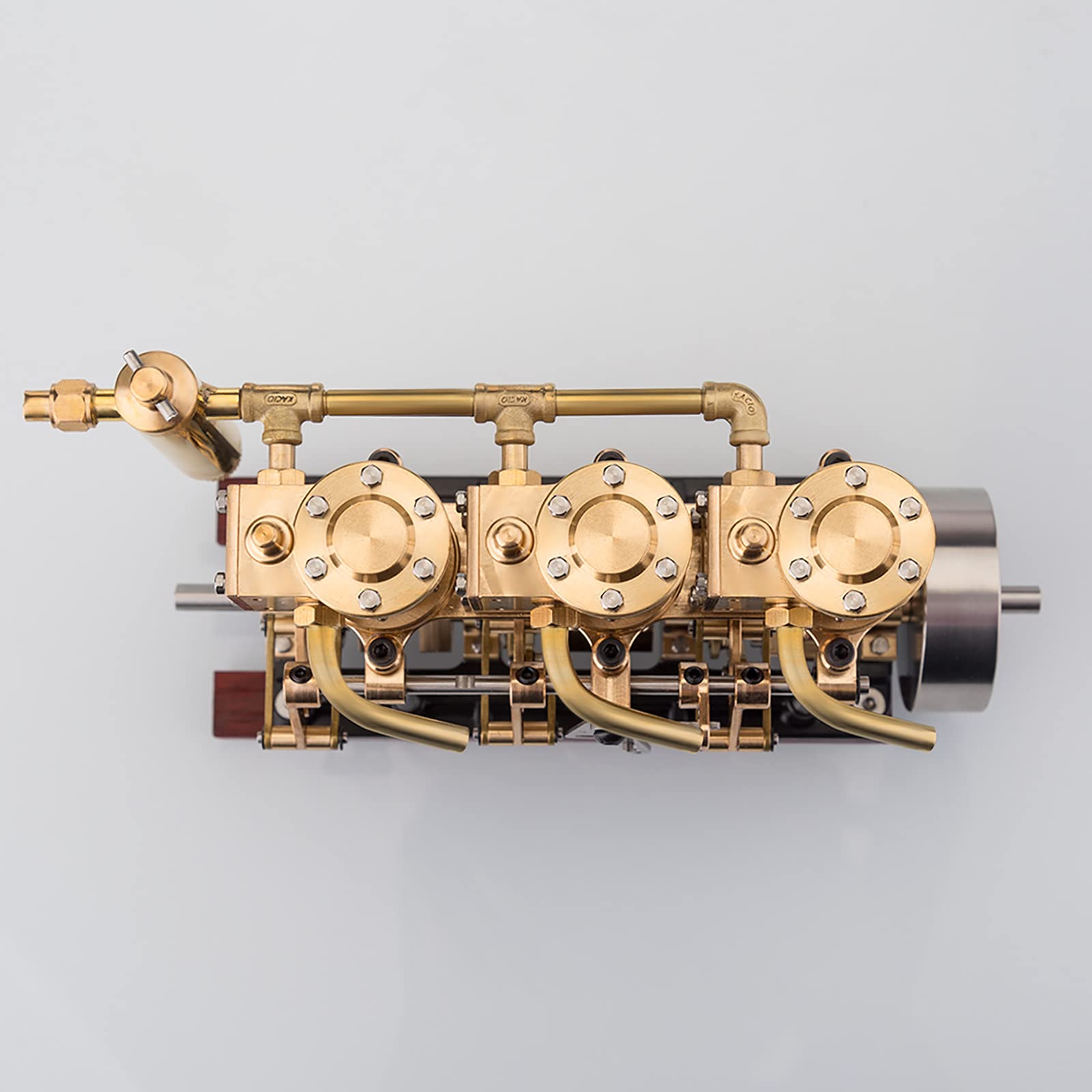

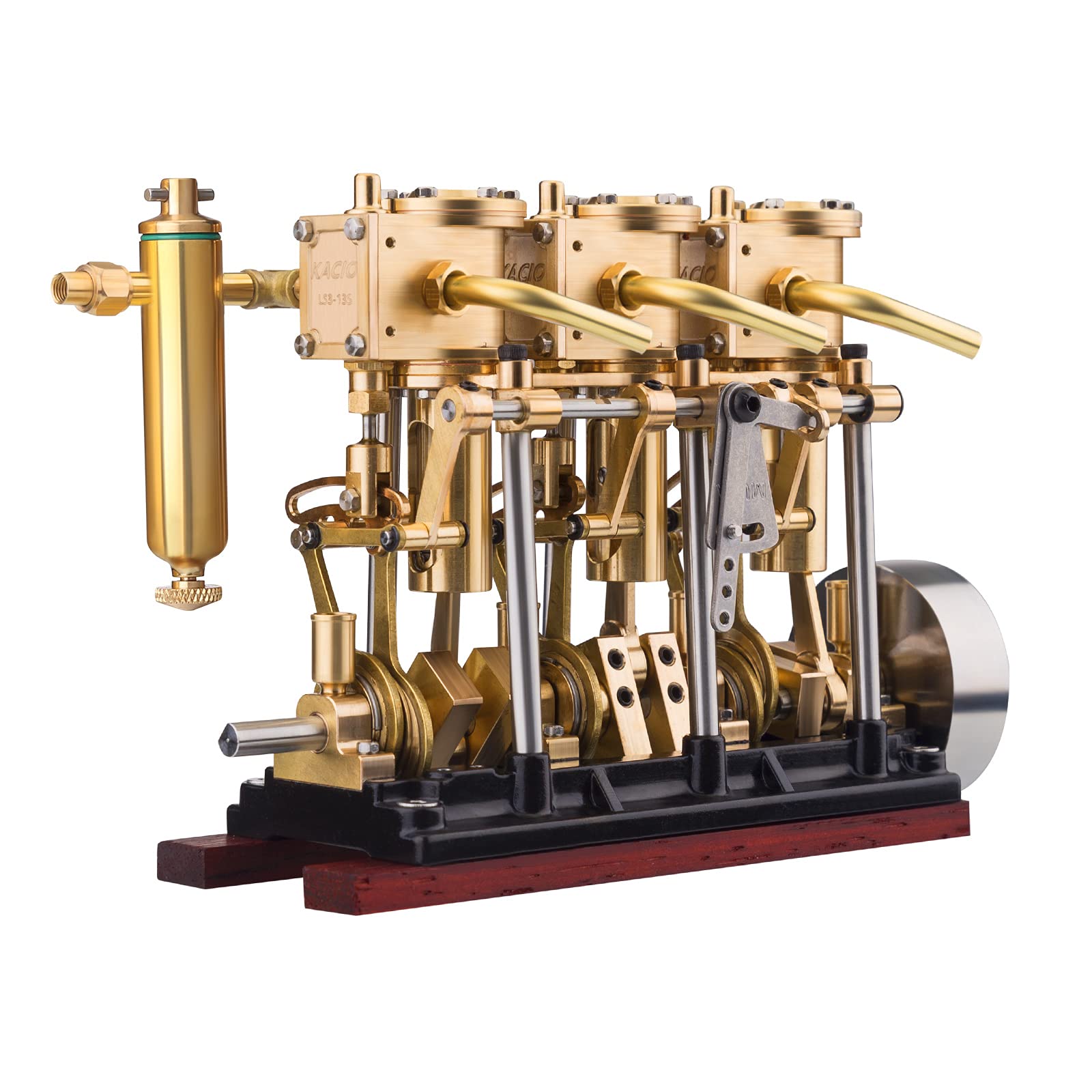

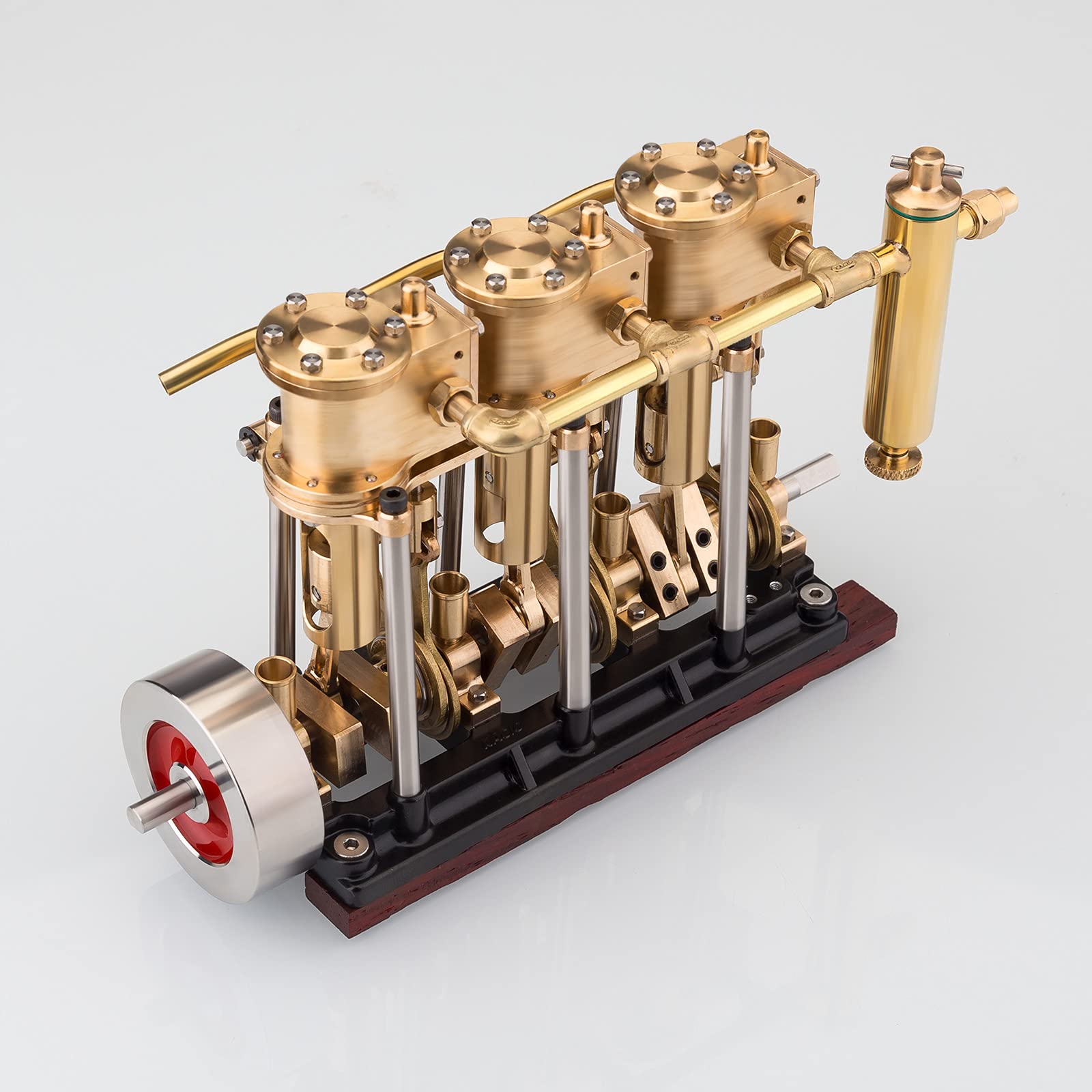

Details: LS3-13S Vertical Three-cylinder Reciprocating Steam Engine Model with Oil Cup Support Forward and Reverse Rotation Suitable for 80-120CM Steam Model Ship - Boiler Not Included
Specifications:
.Material: Copper
.Model: LS3-13S
.Size: base 48mm wide, 111mm long, 95mm high + 6mm thick sleepers
.Bore: 14.0mm
.Stroke: 12.0mm
.Spindle diameter: 5.0mm
.Spindle center ground height: 17.0mm
.Operating pressure: 0.05Mpa-0.8mpa
.Recommended air pressure: 0.2Mpa-0.6mpa
.Inlet interface thread: M6-0.5 1/4-40

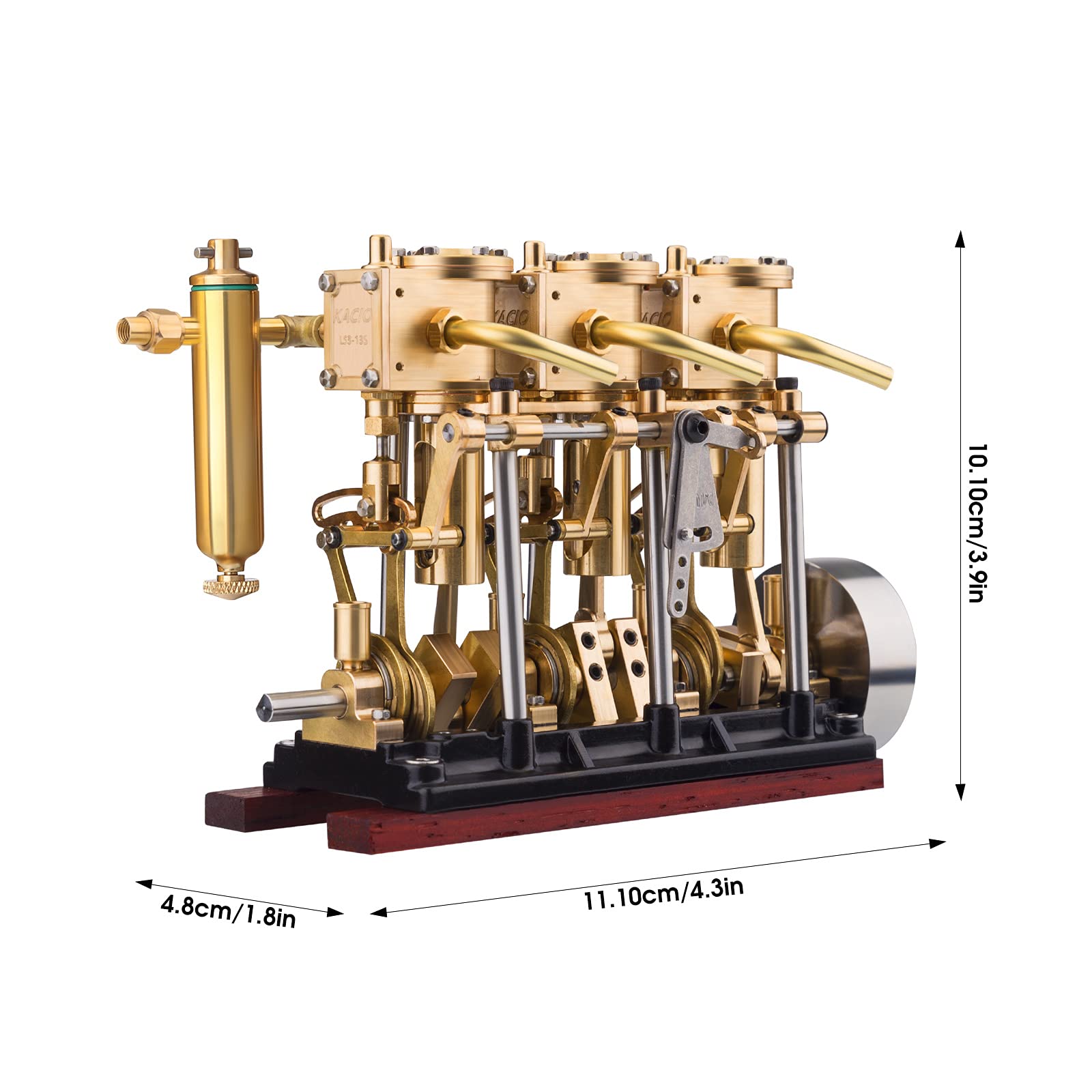

.Product Dimensions: 11.1 x 4.8 x 10.1cm
.Product Weight: 930g
.Package Dimensions: 21 x 16 x 16cm
.Package Weight: 1200g
.Packing: Box
Package Including
.1 x Steam engine model
.1 x lubricating oil cup
.1 x exhaust pipe
.1 x manual *1
EAN: 0740539473806
Package Dimensions: 8.3 x 6.3 x 6.3 inches
