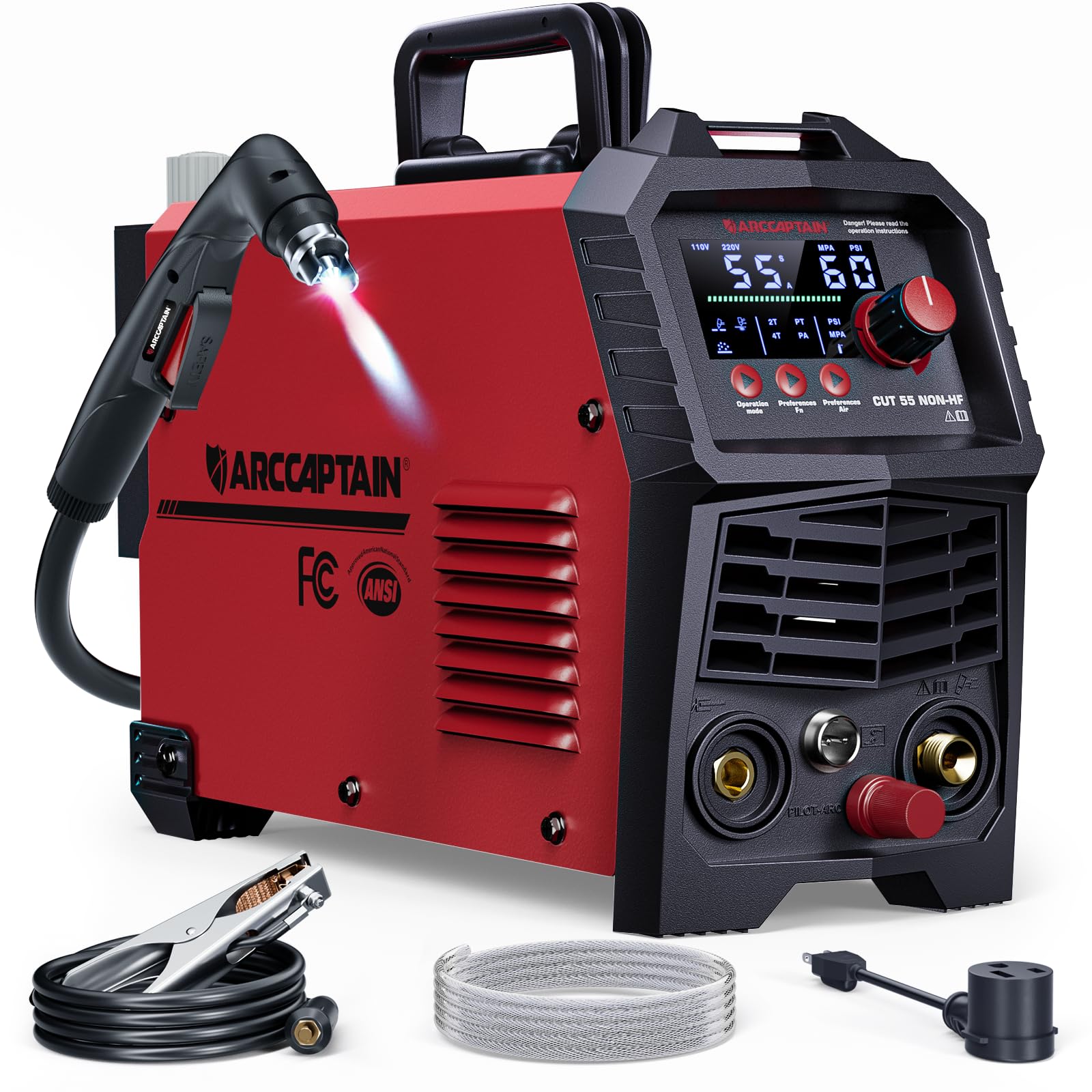

ARCCAPTAIN 55A Non-HF Plasma Cutter Machine, Blowback Pilot Arc, 110V/220V

Brand: ARCCAPTAIN

Color: Red

Features:

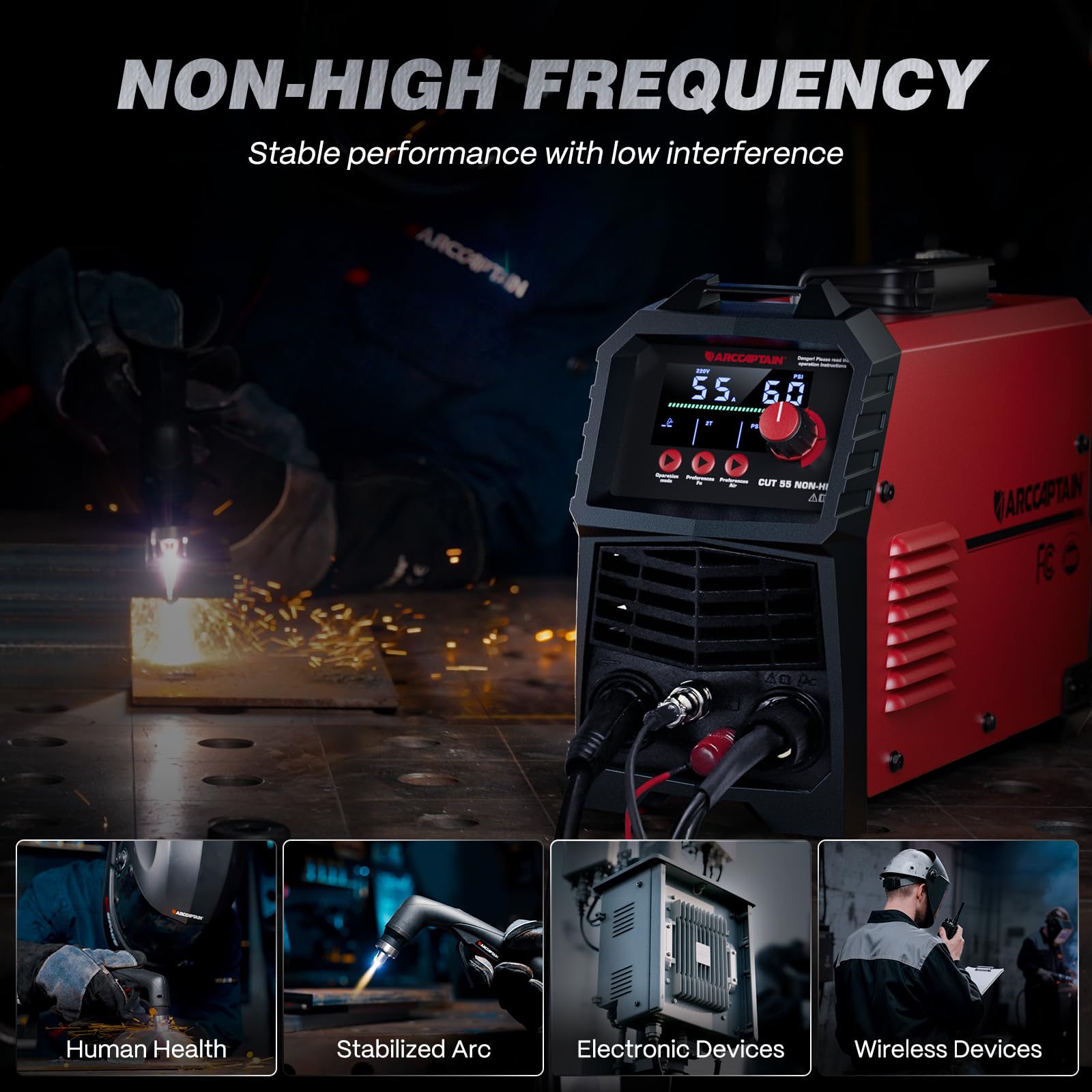

• 【NON-HIGH FREQUENCY】Uses a blow back non-high frequency arc start to prevent signal interference and ensure safer operation for both users and bystanders, posing minimal risk to human health. The low-frequency arc maintenance system improves cutting stability, reduces electrode burn during idle time, and extends the life of consumables. Ideal for home garages and workshop environments.

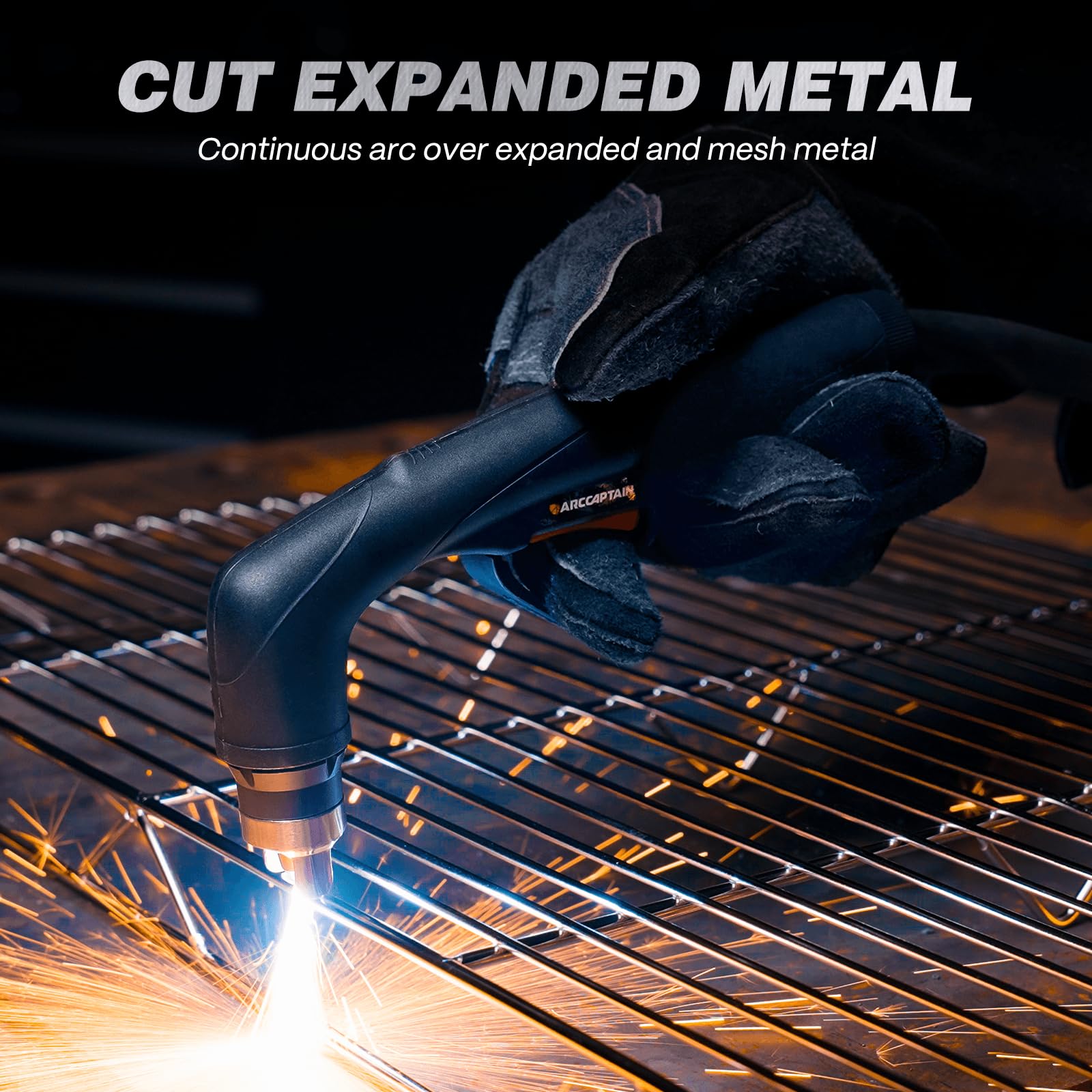

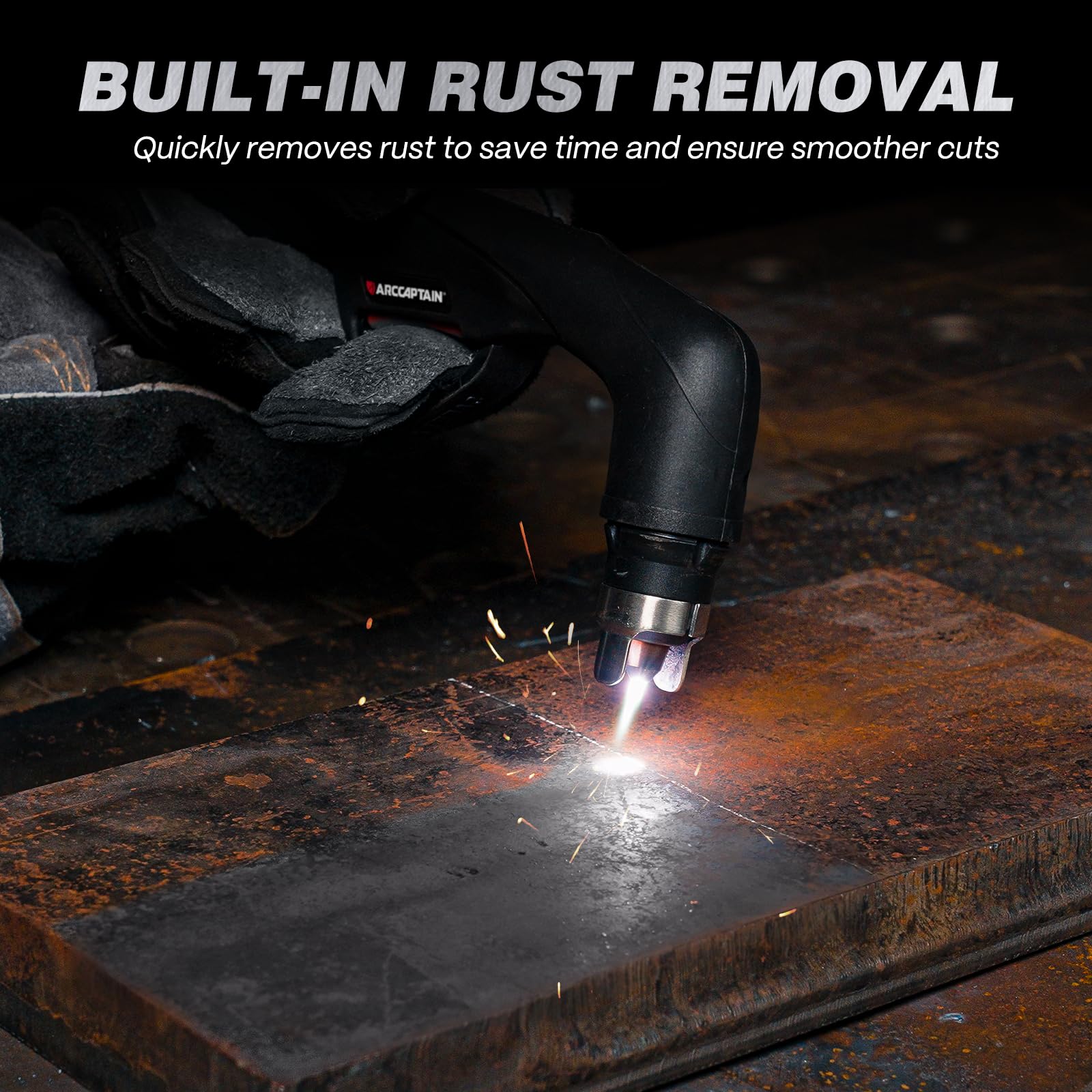

• 【MESH CUTTING & RUST CLEANING】Easily cuts through mesh and expanded metal without arc loss, ensuring smooth, continuous cuts and clean edges. Also features a fast rust removal mode—perfect for cleaning oxidized or dirty surfaces before welding or painting. Save time and improve workflow with dual-purpose functionality.

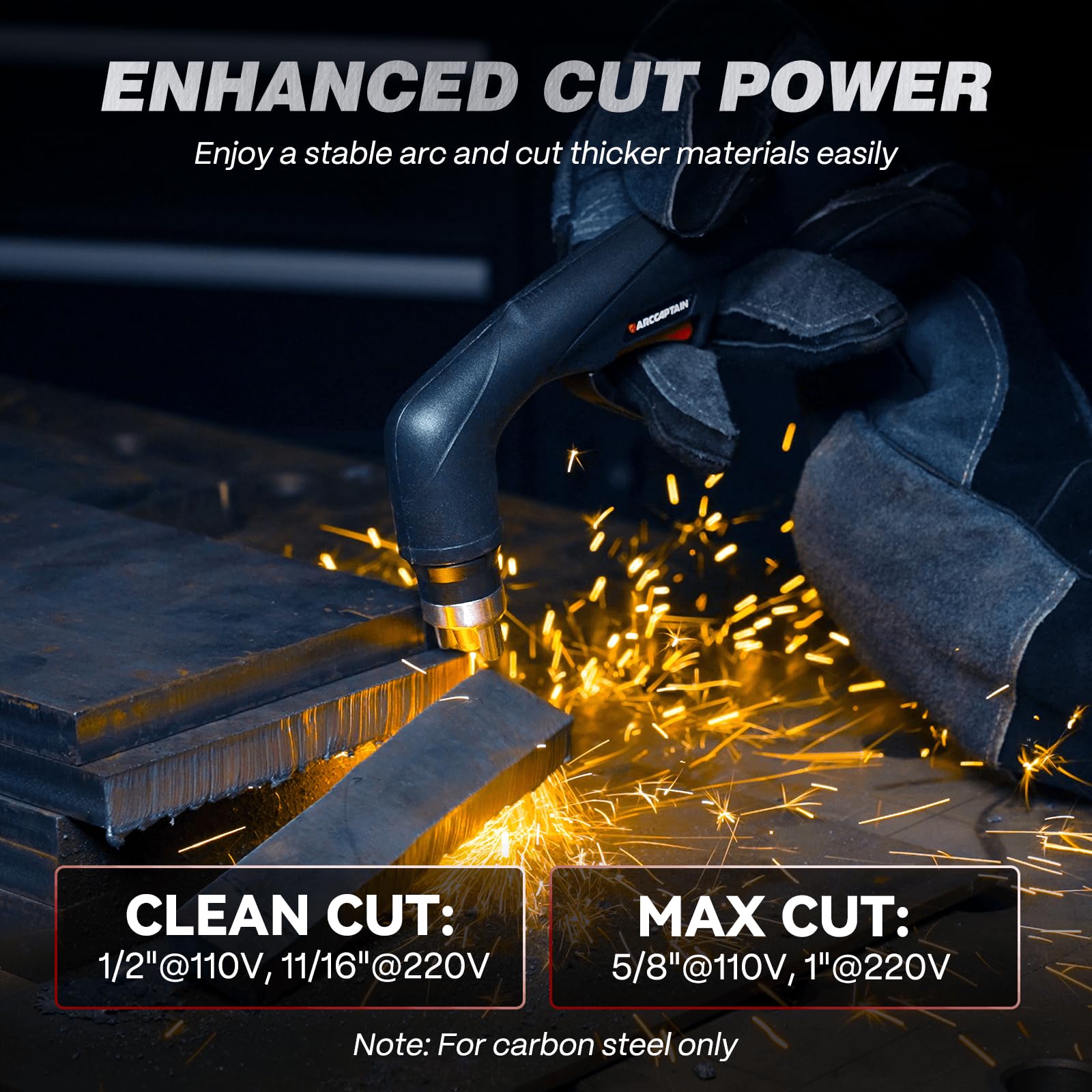

• 【ENHANCED CUT POWER: Delivers up to 3/5" clean cuts on steel, aluminum, and copper with advanced IGBT technology. Supports easy switching between 110V and 220V—perfect for home or workshop use. Built-in air pressure check ensures optimal cutting performance. The maximum cutting thickness is 15mm @ 35A 110V, 50PSI; 26mm@55A 220V, 60PSI. Current display at 110V is 20-35A, under 220V is 20-55A. Note: External air compressor required (not included).

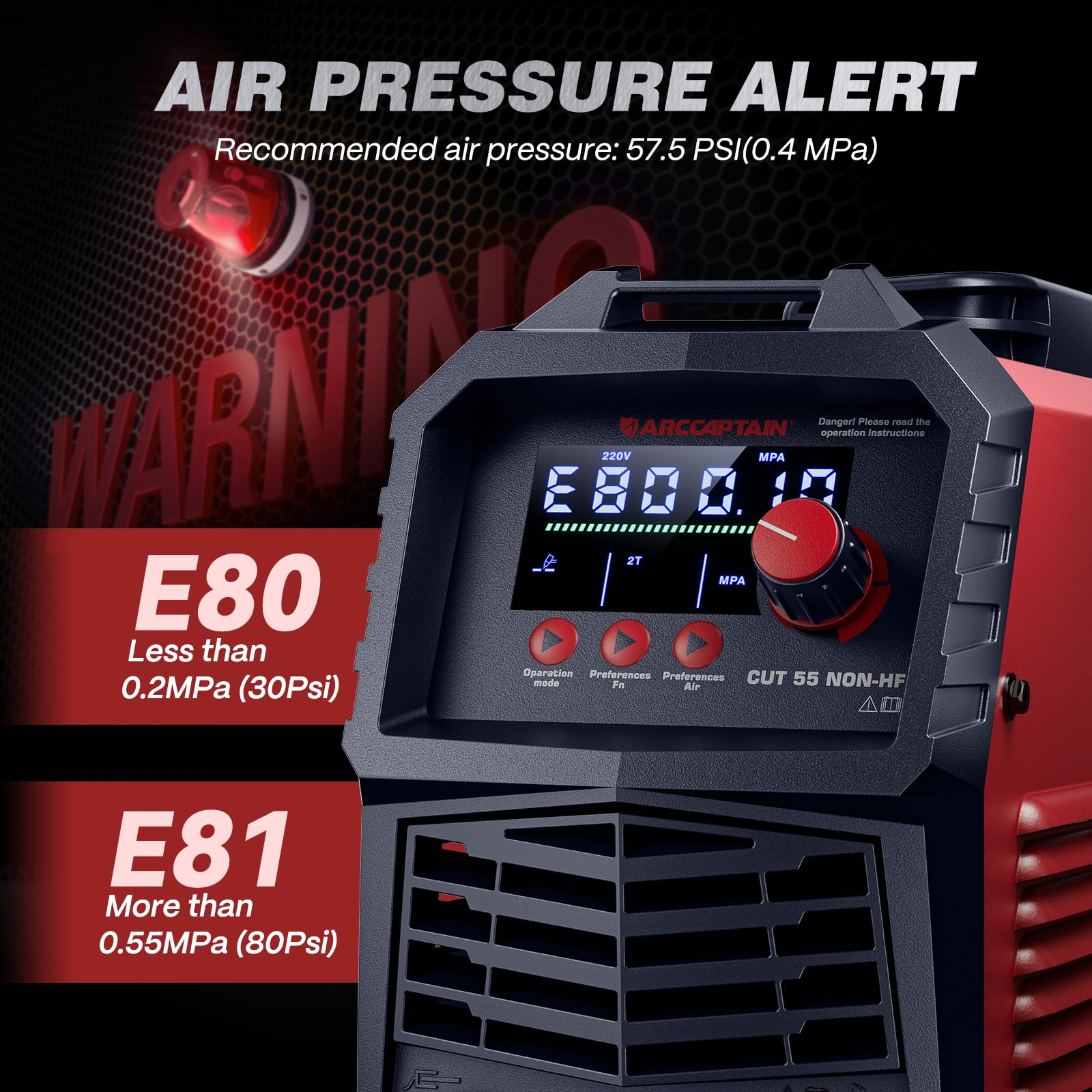

• 【SMART AIR PRESSURE MONITORING】Equipped with a smart air pressure system, it continuously monitors real-time pressure and displays it on the screen. If pressure drops below 30 PSI, the machine triggers an E80 warning; if it rises above 80 PSI, it shows E81 to prevent unsafe operation. Before cutting, you can switch to pressure-detection mode to ensure the pressure stays within the recommended range. Recommended pressure: 110V: 55 PSI | 220V: 50–75 PSI.
• 【ROBUST SAFETY PROTECTION】This plasma cutter features built-in protections for overload, overheating, and overcurrent that trigger clear error codes instead of sudden shutdowns, allowing users to respond promptly. It includes an IGBT low voltage warning, while IP21 water resistance delivers extra safety and extends the machine’s service life. Features a pre-installed, metal-cased air filter with a quick-connect 1/4" NPT fitting—ready to use right out of the box.

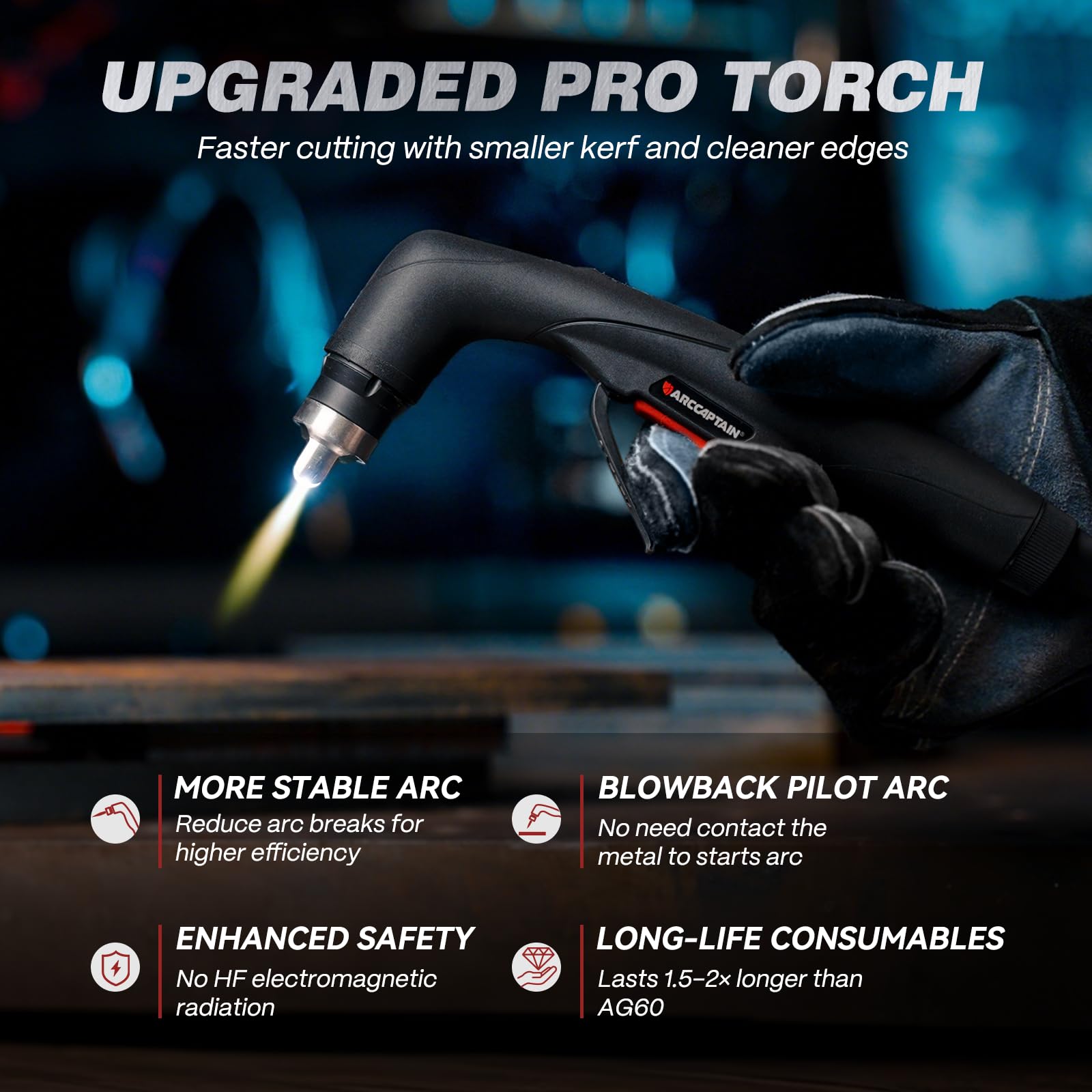

• 【BLOW BACK PILOT ARC & SMART CONTROL】The IPT60 cutting torch with blow back pilot arc ensures reliable arc starting and stable cutting, easily handling rough, painted, rusty, or dirty surfaces without touching the metal. Supports PA (Pilot Arc) with adjustable arc time (2–10s) for mesh cutting or extended consumable life. Adjustable post-flow cooling (5–15s) protects the torch and extends lifespan. 2T/4T modes allow convenient finger-free control for smoother, more precise cutting.

Part Number: ARCCAPTAIN

Package Dimensions: 18.5 x 14.8 x 7.8 inches
